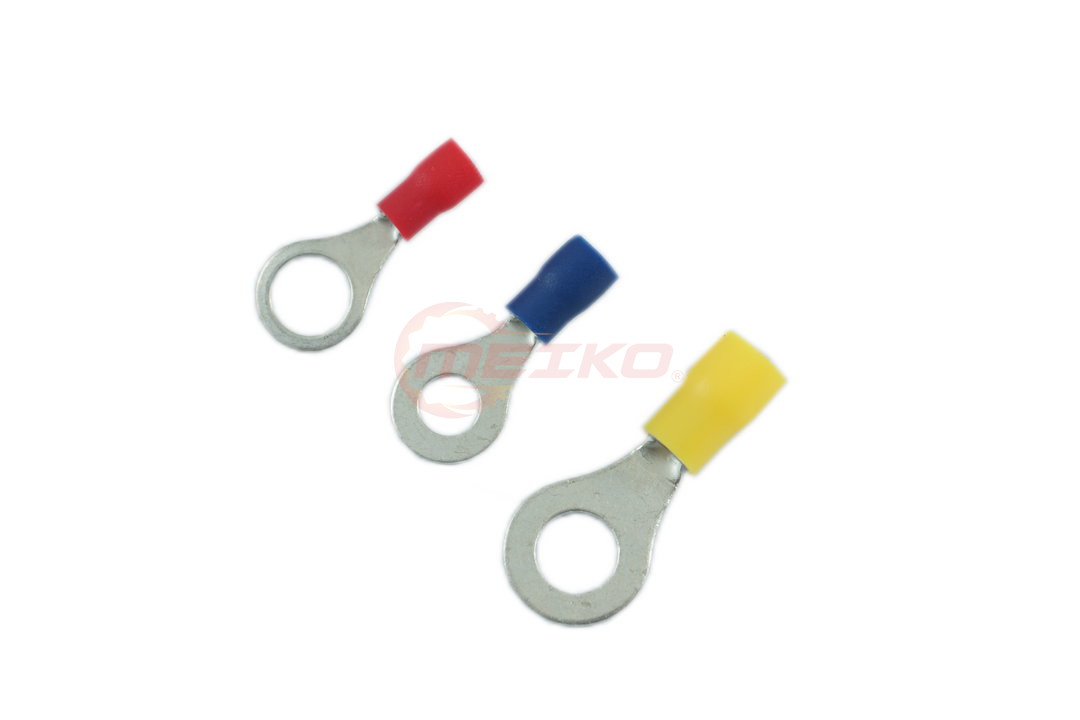

Insulated Cable Terminal Connector, Ring Type
- Material: Polyvinyl Chloride (PVC)
- Finish: PVC Spray Coating
- Features & Benefits:
- Vinyl Insulated
- 100pcs/pack
| Series no. | Product ID | Size | Box / Carton | Note |
|---|---|---|---|---|
| 6030103-15-130 | MCT-RV125032 | Stud: 3 mm, Wire: 0.5-1.0 mm², 22-16 AWG | 50 | Red, Imax=19A |
| 6030103-15-135 | MCT-RV125040S | Stud: 4 mm, Wire: 0.5-1.0 mm², 22-16 AWG | 50 | Red, Imax=19A |
| 6030103-15-140 | MCT-RV125050S | Stud: 5 mm, Wire: 0.5-1.0 mm², 22-16 AWG | 50 | Red, Imax=19A |
| 6030103-15-145 | MCT-RV125060 | Stud: 6 mm, Wire: 0.5-1.0 mm², 22-16 AWG | 50 | Red, Imax=19A |
| 6030103-15-150 | MCT-RV125080 | Stud: 8 mm, Wire: 0.5-1.0 mm², 22-16 AWG | 50 | Red, Imax=19A |
| 6030103-15-155 | MCT-RV200050S | Stud: 5 mm, Wire: 1.5-2.5 mm², 16-14 AWG | 50 | Blue, Imax=27A |
| 6030103-15-160 | MCT-RV200060 | Stud: 6 mm, Wire: 1.5-2.5 mm², 16-14 AWG | 50 | Blue, Imax=27A |
| 6030103-15-165 | MCT-RV200080 | Stud: 8 mm, Wire: 1.5-2.5 mm², 16-14 AWG | 50 | Blue, Imax=27A |
| 6030103-15-170 | MCT-RV550050 | Stud: 5 mm, Wire: 4.0-6.0 mm², 12-10 AWG | 50 | Yellow, Imax=48A |
| 6030103-15-175 | MCT-RV550060 | Stud: 6 mm, Wire: 4.0-6.0 mm², 12-10 AWG | 50 | Yellow, Imax=48A |
| 6030103-15-180 | MCT-RV550080 | Stud: 8 mm, Wire: 4.0-6.0 mm², 12-10 AWG | 50 | Yellow, Imax=48A |
| 6030103-15-185 | MCT-RV550100 | Stud: 10 mm, Wire: 4.0-6.0 mm², 12-10 AWG | 50 | Yellow, Imax=48A |
Item List
MCT-RV125032
6030103-15-130
- Size:
- Stud: 3 mm, Wire: 0.5-1.0 mm², 22-16 AWG
- Box/Carton: 50
- Note:
- Red, Imax=19A
MCT-RV125040S
6030103-15-135
- Size:
- Stud: 4 mm, Wire: 0.5-1.0 mm², 22-16 AWG
- Box/Carton: 50
- Note:
- Red, Imax=19A
MCT-RV125050S
6030103-15-140
- Size:
- Stud: 5 mm, Wire: 0.5-1.0 mm², 22-16 AWG
- Box/Carton: 50
- Note:
- Red, Imax=19A
MCT-RV125060
6030103-15-145
- Size:
- Stud: 6 mm, Wire: 0.5-1.0 mm², 22-16 AWG
- Box/Carton: 50
- Note:
- Red, Imax=19A
MCT-RV125080
6030103-15-150
- Size:
- Stud: 8 mm, Wire: 0.5-1.0 mm², 22-16 AWG
- Box/Carton: 50
- Note:
- Red, Imax=19A
MCT-RV200050S
6030103-15-155
- Size:
- Stud: 5 mm, Wire: 1.5-2.5 mm², 16-14 AWG
- Box/Carton: 50
- Note:
- Blue, Imax=27A
MCT-RV200060
6030103-15-160
- Size:
- Stud: 6 mm, Wire: 1.5-2.5 mm², 16-14 AWG
- Box/Carton: 50
- Note:
- Blue, Imax=27A
MCT-RV200080
6030103-15-165
- Size:
- Stud: 8 mm, Wire: 1.5-2.5 mm², 16-14 AWG
- Box/Carton: 50
- Note:
- Blue, Imax=27A
MCT-RV550050
6030103-15-170
- Size:
- Stud: 5 mm, Wire: 4.0-6.0 mm², 12-10 AWG
- Box/Carton: 50
- Note:
- Yellow, Imax=48A
MCT-RV550060
6030103-15-175
- Size:
- Stud: 6 mm, Wire: 4.0-6.0 mm², 12-10 AWG
- Box/Carton: 50
- Note:
- Yellow, Imax=48A
MCT-RV550080
6030103-15-180
- Size:
- Stud: 8 mm, Wire: 4.0-6.0 mm², 12-10 AWG
- Box/Carton: 50
- Note:
- Yellow, Imax=48A
MCT-RV550100
6030103-15-185
- Size:
- Stud: 10 mm, Wire: 4.0-6.0 mm², 12-10 AWG
- Box/Carton: 50
- Note:
- Yellow, Imax=48A
