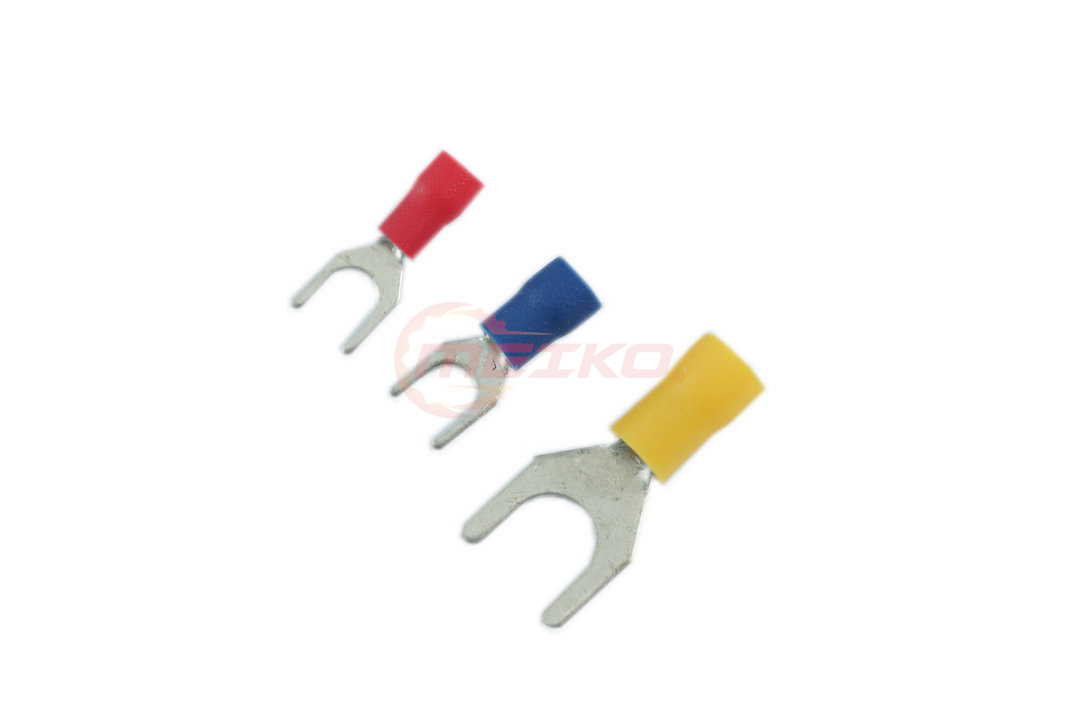

Insulated Cable Terminal Connector, Fork Type

  • Material: Polyvinyl Chloride (PVC)
  • Finish: PVC Spray Coating
  • Features & Benefits:
    • Vinyl Insulated
    • 100pcs/pack
Series no. Product ID Size Box / Carton Note
6030103-20-200 MCT-SV125032 Stud: 3 mm, Wire: 0.5-1.0 mm², 22-16 AWG 50 Red, Imax=19A
6030103-20-205 MCT-SV125040M Stud: 4 mm, Wire: 0.5-1.0 mm², 22-16 AWG 50 Red, Imax=19A
6030103-20-210 MCT-SV125050S Stud: 5 mm, Wire: 0.5-1.0 mm², 22-16 AWG 50 Red, Imax=19A
6030103-20-215 MCT-SV200032 Stud: 5 mm, Wire: 1.5-2.5 mm², 16-14 AWG 50 Blue, Imax=27A
6030103-20-220 MCT-SV200040M Stud: 6 mm, Wire: 1.5-2.5 mm², 16-14 AWG 50 Blue, Imax=27A
6030103-20-225 MCT-SV200050S Stud: 8 mm, Wire: 1.5-2.5 mm², 16-14 AWG 50 Blue, Imax=27A
6030103-20-230 MCT-SV550050 Stud: 5 mm, Wire: 4.0-6.0 mm², 12-10 AWG 50 Yellow, Imax=48A
6030103-20-235 MCT-SV550060S Stud: 6 mm, Wire: 4.0-6.0 mm², 12-10 AWG 50 Yellow, Imax=48A
6030103-20-240 MCT-SV550080 Stud: 8 mm, Wire: 4.0-6.0 mm², 12-10 AWG 50 Yellow, Imax=48A

Item List

MCT-SV125032

6030103-20-200
  • Size:
    • Stud: 3 mm, Wire: 0.5-1.0 mm², 22-16 AWG
  • Box/Carton: 50
  • Note:
    • Red, Imax=19A

MCT-SV125040M

6030103-20-205
  • Size:
    • Stud: 4 mm, Wire: 0.5-1.0 mm², 22-16 AWG
  • Box/Carton: 50
  • Note:
    • Red, Imax=19A

MCT-SV125050S

6030103-20-210
  • Size:
    • Stud: 5 mm, Wire: 0.5-1.0 mm², 22-16 AWG
  • Box/Carton: 50
  • Note:
    • Red, Imax=19A

MCT-SV200032

6030103-20-215
  • Size:
    • Stud: 5 mm, Wire: 1.5-2.5 mm², 16-14 AWG
  • Box/Carton: 50
  • Note:
    • Blue, Imax=27A

MCT-SV200040M

6030103-20-220
  • Size:
    • Stud: 6 mm, Wire: 1.5-2.5 mm², 16-14 AWG
  • Box/Carton: 50
  • Note:
    • Blue, Imax=27A

MCT-SV200050S

6030103-20-225
  • Size:
    • Stud: 8 mm, Wire: 1.5-2.5 mm², 16-14 AWG
  • Box/Carton: 50
  • Note:
    • Blue, Imax=27A

MCT-SV550050

6030103-20-230
  • Size:
    • Stud: 5 mm, Wire: 4.0-6.0 mm², 12-10 AWG
  • Box/Carton: 50
  • Note:
    • Yellow, Imax=48A

MCT-SV550060S

6030103-20-235
  • Size:
    • Stud: 6 mm, Wire: 4.0-6.0 mm², 12-10 AWG
  • Box/Carton: 50
  • Note:
    • Yellow, Imax=48A

MCT-SV550080

6030103-20-240
  • Size:
    • Stud: 8 mm, Wire: 4.0-6.0 mm², 12-10 AWG
  • Box/Carton: 50
  • Note:
    • Yellow, Imax=48A
